Lavasciuga

RANGER R 115 FD 75 CHEM

SCRUBBER DRYER RANGER R 115 FD 75 CHEM G&W

Cod: 10.0715.00

Overview

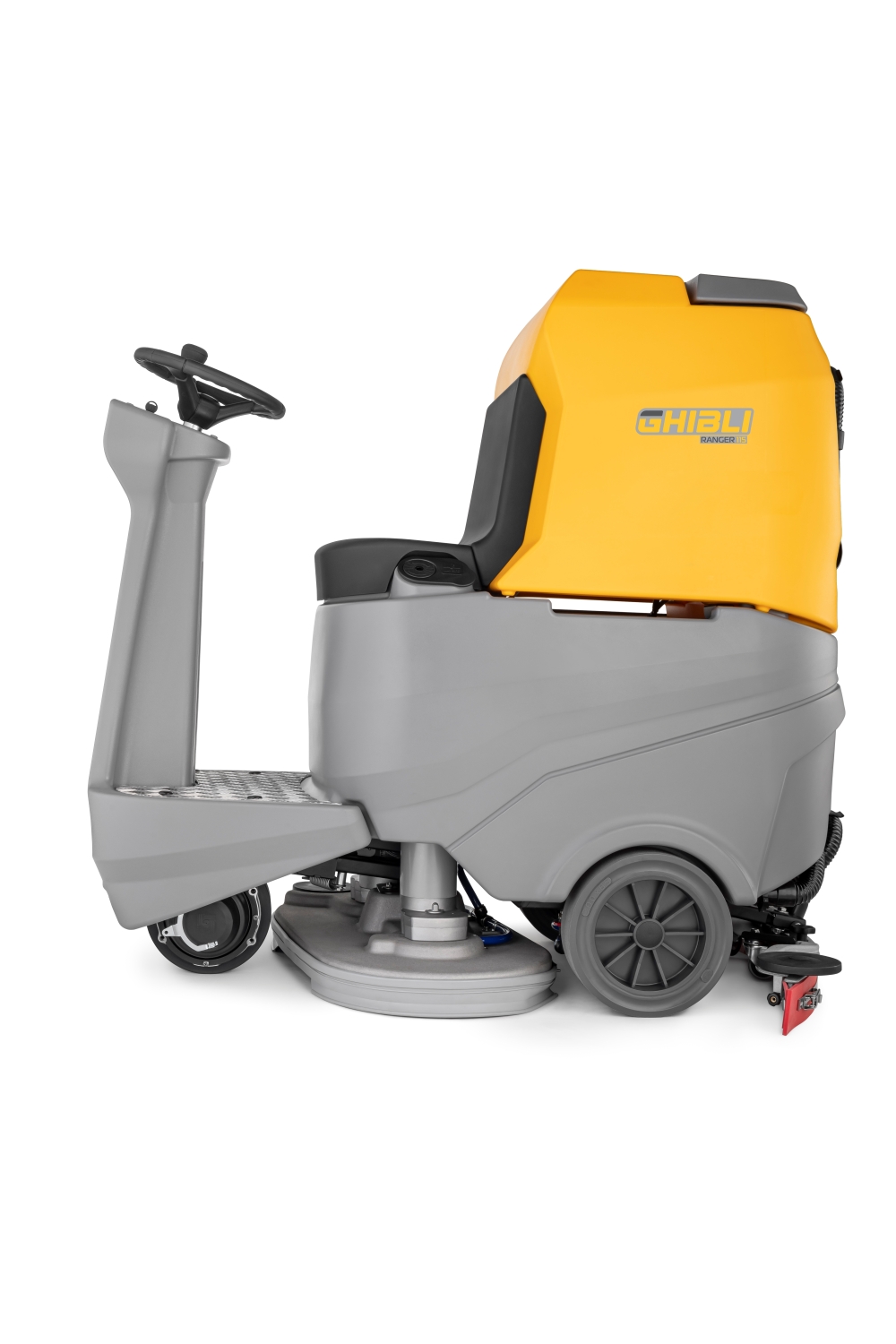

Ranger R 115 FD 75 is the ride-on scrubber dryer designed for cleaning operations in medium and large areas. It combines high performance and ergonomics along with maximum comfort for the operator. 115 liter capacity and the large cleaning width (750 mm) ensure a productivity of 4500 m²/h. The extra down pressure and detergent action (chemical mixing system) ensure excellent cleaning performance; the sturdy aluminium brush head is able to perfectly adapt itself to any obstacle and makes Ranger the ideal machine for cleaning closed to wall. The squeegee, with natural rubber blades supplied as standard, guarantees the best drying performance on every kind of surface. In the event of accidental impacts, the squeegee can also move and automatically retract under the machine frame, guaranteeing maximum safety and effectiveness. The practical and intuitive control panel ensures the control and management of all the machine functions: - it is possible to be immediately ready for the work session thanks the READY TO GO function which allows, by pressing a single button, the activation and setting of all the main functions of the machine; - the ECO SYSTEM program optimizes consumptions and eliminates waste, making Ranger an eco-friendly machine. Ranger is easy to use, no training is required and even daily maintenance operations are quick and easy. That is why even the untrained operators are able to work with this professional scrubber dryer. Available in three versions, one basic and two full package (BC and BC PLUS), with batteries and battery charger included, Ranger can reach up to 7 hours running time in the BC PLUS version!

Photo gallery

Technical data

FEATURES

  • Cleaning width750mm
  • Squeegee width950mm
  • Productivity (theor./practical)4500 - 2700m²/h
  • Power supplyBattery 24 V
  • Installed power2300W
  • Advancementwith traction
  • IP codeIPX3

BATTERIES

  • Type---
  • Running time---h - min
  • Battery compartment dimensions x No380x625x440 X 1mm x No

BRUSHES

  • Pad diameter x No380 - 15" x 2mm - inch x nr
  • Motor rating x No500 x 2W x nr
  • Motor speed165rpm
  • Down pressure - Contact pressure35;70 - 21;43Kg - g /cm²

TRACTION

  • Motor rating600W
  • Driving speed6Km/h
  • Hill climbing ability (full load)2%
  • Hill climbing ability (empty)12%

VACUUM

  • Motor rating550W
  • Vacuum125 - 1250mbar - mmH2O
  • Air flow rate30l/s
  • Noise level63 - 57 (silent mode)dB(A)

TANK

  • TypeDouble tank
  • Cleaning solution tank110l
  • Recovery tank115l
  • Weight (empty - with batteries)246 / ---Kg
  • Dimensions1470x950x1365mm

Standard accessories

  • 30.0024.00SOLUTION TANK FILLING HOSE
  • 40.0008.0015" POLYPROPYLENE BRUSH D. 0.7
  • 96.0207.00BRUSH SOLUTION DIFFUSER
  • 22.0729.00SPLASHGUARD
  • 96.0177.00SET FRONT+REAR NATURAL RUBBER SQUEEGEE BLADES
  • 96.0206.00CHEMICAL MIXING SYSTEM
  • 96.0181.00BLINKING KIT

Optional accessories

  • 40.0108.0015" POLYPROPYLENE BRUSH D. 0,9
  • 40.0208.0015" TYNEX BRUSH D. 0,9 GRIT 240
  • 40.1008.00PAD HOLDER 355 MM (FOR 15" PAD)
  • 96.0177.01SET POLYURETHANE SQUEEGEE BLADES (FRONT/REAR)
  • 96.0180.00HEADLIGHT KIT
  • 96.0182.00CORNER DRYING KIT
  • 96.0183.00WATER STOP KIT
  • 96.0212.00FLEET 4 YOU
  • 96.0213.00FLEET & KEY 4 YOU
